Soundproofing for Recording Studios: Perfect Acoustics for Recordings
The most important points in brief: Professional recording studio soundproofing requires a combination of sound isolation (against external noise) and room acoustics optimization (against reflections). While structural measures are expensive and complex, high-quality acoustic panels with absorption values of αw 0.9 offer an effective and affordable solution for home studios and professional recording rooms. Treating just 20-30% of the wall surface can significantly improve recording quality.
The quality of an audio recording stands or falls with the room acoustics. Even the most expensive microphone cannot perform to its full potential if the room is characterized by reverb, flutter echoes, and unwanted reflections. At the same time, external noise—from street traffic to neighbors—must not find its way into the recording. For professional recording studios and ambitious home recording setups, well-planned soundproofing is therefore indispensable.
Many musicians, podcasters, and audio creators invest thousands of Euros in equipment but neglect the acoustic treatment of their recording room. The result: watered-down recordings with a diffuse sound image that are difficult to rescue in post-production. Yet, with targeted measures, acoustics meeting professional standards can be achieved even in a home studio—without having to spend a fortune.
Soundproofing vs. Room Acoustics: The Two Pillars of Studio Acoustics
Before you begin the acoustic treatment of your studio, it is important to understand two fundamental concepts: soundproofing and room acoustics. Both pursue different goals and require different approaches.
Soundproofing (also known as sound isolation) prevents sound from penetrating your studio from the outside or escaping from the inside to the outside. It protects your recordings from street noise, footsteps in the stairwell, or conversations from neighboring rooms. At the same time, it ensures that your late-night recording sessions do not become a burden for the neighborhood. Soundproofing is achieved through mass, decoupling, and multi-layered wall structures—typically structural measures such as acoustic shells, floating screeds, or special soundproof doors.
Room acoustics optimization, on the other hand, deals with the sound behavior within the room. It reduces unwanted reflections, controls reverberation times, and prevents acoustic problems such as flutter echoes or standing waves. Absorbing and diffusing elements are used here—from acoustic panels to bass traps to diffusors. For most recording studios, room acoustics is the more decisive factor for recording quality.
Why Home Studios Often Fail: Typical Acoustic Problems
Untreated rooms exhibit characteristic acoustic deficiencies that directly impact recording quality. Bare walls made of concrete, drywall, or plastered masonry reflect sound almost completely. This leads to a diffuse, reverberant sound image in which individual frequencies are uncontrollably amplified or cancelled out.
Parallel walls, which are the norm in rectangular rooms, are particularly problematic. They create standing waves—certain frequencies are thrown back and forth between the walls and overlap constructively or destructively. The result: In some places in the room, bass sounds excessively present; in others, it is completely absent. This is fatal for precise mixing and mastering.
Another frequent problem is flutter echoes—rapid, rhythmic reflections between parallel surfaces that become audible particularly with percussive signals like speech recordings or drums. They give recordings a metallic, hollow character.
The Right Strategy: Planning Soundproofing for Recording Studios
Effective recording studio soundproofing requires a well-thought-out strategy that considers both structural conditions and budget and usage requirements. Not every studio requires the same treatment—a podcast studio has different requirements than a drum recording room.
Step 1: Room Analysis and Setting Priorities
Begin with an honest inventory: Which noise sources disturb your recordings the most? Is it street traffic, footsteps from above, or rather the reverberation in the room itself? For most home studios, internal room acoustics is the bigger problem than sound isolation to the outside.
Make test recordings in various room positions and with different signals (speech, vocals, instruments). Pay attention to reverberation times, bass accumulation, and unwanted reflections. A simple test: Clap your hands—do you hear a clear, short echo or a diffuse after-ring? A pronounced flutter echo indicates an urgent need for action.
Step 2: Identifying Critical Reflection Points
Sound waves behave like light—they are reflected by smooth surfaces. The most important reflection points in a studio are the so-called "First Reflection Points"—those spots on walls and ceiling where the direct sound from the speakers or the sound source is reflected for the first time before reaching your ears (or the microphone).
In a typical stereo setup with monitor speakers, these points are located laterally next to the listening position as well as on the ceiling above. The wall behind the speakers and the opposite rear wall also play an important role. These areas should be treated with absorbing materials as a priority.
Step 3: Choosing the Right Material
Various materials are available for room acoustics optimization. Foam pyramids are inexpensive but thin and absorb mainly high frequencies—the sound image becomes dull without the problematic bass frequencies being controlled. Professional acoustic panels made of highly dense material offer significantly more broadband absorption.
High-quality acoustic panels with a density of 1500-2000 g/m² and an absorption coefficient of αw 0.9 absorb up to 90 percent of the incident sound energy over a broad frequency spectrum. The material—typically recycled PET—is not only acoustically effective but also pollutant-free and odorless—an important aspect for rooms where one spends many hours.
Acoustic Panels for Professional Recording Studios: Materials and Mode of Action
Choosing the right acoustic panels is crucial for the success of your studio soundproofing. It depends not only on aesthetics but above all on measurable acoustic properties.
Felt Acoustic Panels: The Foundation for Every Studio
Acoustic panels made of highly compressed polyester felt are the workhorses of room acoustics. With a material thickness of 15 mm and a density of 2000 g/m², they offer extraordinarily effective sound absorption. The absorption coefficient αw 0.9 means that 90 percent of the incident sound energy is converted into heat—only 10 percent is reflected back into the room.
Particularly practical for studio applications: The self-adhesive backing allows for tool-free installation. You simply peel off the protective film and press the panel into the desired position. The adhesive layer adheres reliably to all common substrates—from drywall to wallpaper to painted surfaces. Should you want to rearrange your studio later, the panels can be removed without residue—ideal for rental spaces.
The square shape (30 x 30 cm) allows for flexible design options. You can mount the panels over a surface area, create patterns, or target only the critical reflection points. For a typical 15 m² home studio, 4-6 m² of panel surface is recommended as a starting point.
Wood Acoustic Panels: Aesthetics Meet Function
For studios that should not only sound good but also look representative, wood acoustic panels are suitable. These combine a 9 mm strong acoustic felt with 12 mm wooden slats made of FSC-certified real wood veneer. The total thickness of 21 mm makes them particularly effective absorbers.
The special feature lies in the dual function: While the highly compressed felt (1500 g/m²) absorbs the sound, the wooden slats break the sound waves and scatter them diffusely back into the room. This effect is particularly valuable in studios that are not supposed to sound completely "dry"—for example, for acoustic music recordings where a certain natural room component is desired.
With dimensions of 120 x 60 cm, a single panel covers 0.72 m². The panels can be joined seamlessly and even cut to size with a carpet knife (felt) and a fine saw (wood)—perfect for creating cutouts for sockets or switches. Installation is done with mounting adhesive or alternatively with screws if you prefer residue-free dismantling.
Soundproofing in the Home Studio: Practical Implementation
Theory is one thing—practical implementation is another. Here you will learn how to acoustically optimize your home studio step by step without breaking your budget.
Wall Treatment: First Reflection Points First
Start with the lateral reflection points next to your listening position. Sit at your mixing spot and have a second person slowly guide a mirror along the side wall. As soon as you can see your speakers in the mirror, you have found the First Reflection Point. Mark this spot—this is where an absorber belongs.
For a typical stereo listening position, you need one absorber on the left and right (at least 60 x 60 cm). High-quality felt acoustic panels in Gray or White blend discreetly into the room design and deliver effective broadband absorption with their 15 mm thickness.
The wall behind the speakers should also be treated to minimize back reflections. Here you can either use felt panels over the surface or opt for wood acoustic panels for a higher-quality look. An area of 1.5-2 m² is a good starting point here.
Ceiling Treatment: The Often Forgotten Factor
The ceiling is one of the largest contiguous reflection surfaces in the room—but is often neglected. Especially with low room heights (under 2.50 m), ceiling reflections are particularly problematic. They lead to a diffuse, unclear stereo image and distort the perception of highs.
Install at least one absorber surface of 1-2 m² directly above your listening position. The self-adhesive felt panels also adhere reliably to ceilings—just make sure that the surface is clean, dry, and grease-free. For textured ceilings, additional fixation with double-sided adhesive tape can be useful.
Corners and Edges: Don't Forget Bass Traps
Low frequencies accumulate preferentially in room corners. This is where so-called modes are created—standing waves that massively amplify certain bass frequencies. Effective bass absorption requires thick, dense materials in large volumes.
Stack several layers of acoustic panels on top of each other in the room corners (3-4 layers) or use corner absorbers designed specifically for this purpose. The cumulative thickness of 45-60 mm reaches lower frequencies and noticeably smooths the bass response of your room.
Special Requirements: Vocal Booth and Drum Room
Depending on the type of recordings, special requirements for soundproofing may arise. Vocal recordings and drums present particular challenges.

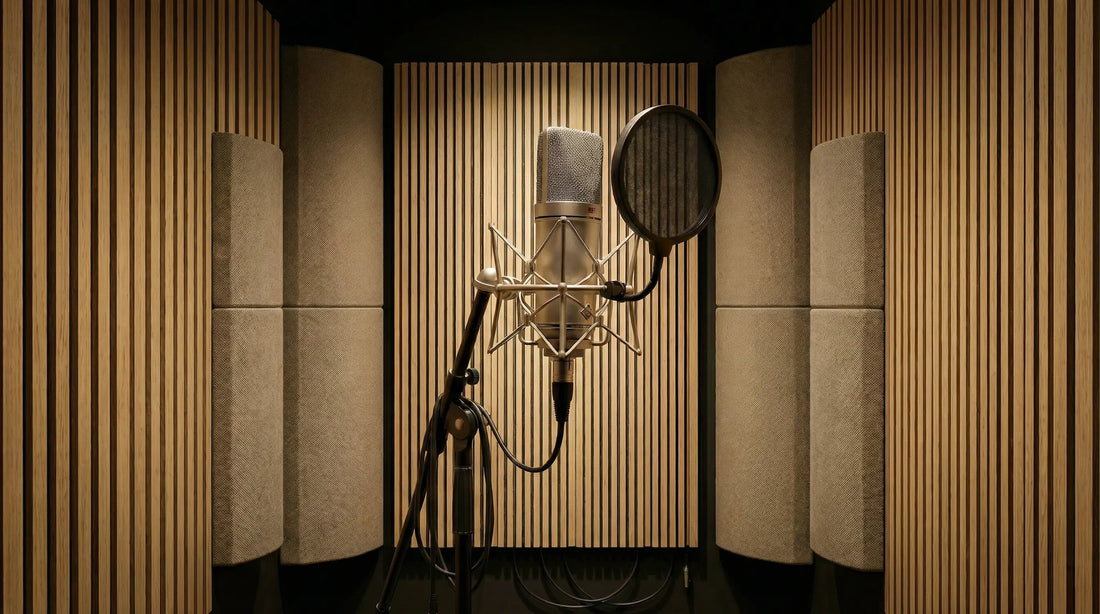

Vocal Booth: Dry Acoustics for Clear Vocals
For professional vocal recordings, an environment that is as reflection-free as possible is ideal. The room should sound so "dry" that artificial reverb can be added specifically in post-production—conversely, natural room reverb cannot be removed.
Treat all walls around the microphone position with absorbing panels. Coverage of 40-50 percent of the wall surface is not uncommon here. Combine felt panels for high and mid frequencies with thicker absorbers in the corners for the bass range.
Also pay attention to the floor: Hard floors (laminate, tiles) reflect strongly. A thick carpet or special floor absorbers under the microphone stand minimize floor reflections that would otherwise lead to a hollow, "comb-filter-like" sound.
Drum Recording: Controlled Liveness
Drum recordings require a different approach. Here, a certain room component is desired—complete dryness would sound unnatural. At the same time, uncontrolled reflections and flutter echoes must be prevented.
rely on a combination of absorption and diffusion. Wood acoustic panels are ideal here, as their slat structure scatters the sound, while the felt dampens excessive reflections. Treat about 25-30 percent of the wall surface—enough to eliminate problems, but not so much that the room becomes lifeless.
The rear wall behind the drums should be more strongly absorbed than the front side to prevent reflections from going directly back into the microphones. Here you can use felt panels over the surface.
Budget Planning: What Does Professional Recording Studio Soundproofing Cost?
The costs for effective soundproofing vary greatly depending on room size, initial situation, and quality standards. Here is a realistic estimate for various scenarios.
Entry-Level Setup (Home Podcast Studio, 10-12 m²)
For a small podcast or voiceover studio, targeted measures at critical points are often sufficient. Calculate with 3-4 m² of absorber surface, distributed over First Reflection Points, ceiling, and rear wall. With high-quality felt acoustic panels, you are looking at about $160-$220 for materials—a manageable investment for a clearly audible improvement.
Ambitious Home Studio (15-20 m²)
A full-fledged recording and mix studio requires more comprehensive treatment. Plan for 6-8 m² of absorber surface, combined from felt panels for reflection points and wood panels for visually exposed areas. Additionally, you should invest in corner absorbers for bass control. Budget: $430-$750 for a professional basic setup.
Professional Studio (30+ m²)
Larger studios with separate recording and control rooms require correspondingly more material. Here you should calculate with 12-15 m² of absorber surface, supplemented by diffusors and bass traps. Depending on the level of equipment, material costs range between $1,100 and $2,200—still a fraction of what structural measures would cost.
Assembly and Installation: How to Properly Attach Acoustic Panels
The best acoustic planning is of little use if the installation is not done professionally. Here are the most important points for a durable, safe installation.
Preparation: The Substrate Decides
Clean the mounting surfaces thoroughly. Dust, grease, or moisture impair the adhesion of self-adhesive panels. For freshly painted walls, you should plan for at least two weeks of drying time—otherwise, the paint may come off along with the panel.
Rough or textured substrates (ingrain wallpaper, textured plaster) reduce the contact surface. Here it can be useful to treat the wall with a primer beforehand and smooth it, or to rely on installation with adhesive instead of the self-adhesive backing.
Felt Panels: Self-Adhesive Installation
The installation of self-adhesive felt panels is very simple: peel off the protective film, align the panel, and press firmly. It is important that you position the panel correctly immediately—once stuck, it is difficult to remove without damaging the adhesive layer.
Work from bottom to top and from inside to outside when joining several panels into a surface. This avoids visible offsets. The straight edges of the panels allow for seamless transitions—with careful work, a homogeneous surface without recognizable joints is created.
Wood Panels: Installation with Adhesive or Screws
Wood acoustic panels are significantly heavier than felt panels at 5.2 kg per piece and are not self-adhesive. The recommended installation method is high-quality mounting adhesive (e.g., Pattex Mounting Adhesive or similar). Apply the adhesive in lines or dots on the back and press the panel firmly against the wall for 30-60 seconds.
For residue-free, demountable installation, you can also use screws. Carefully drill through the wooden slats (not through the felt) and screw the panel to the wall. The screw heads can be concealed with wood plugs. This method is particularly suitable for rental spaces, as only small dowel holes remain when moving out, which are easy to fill.
Frequently Asked Questions (FAQ)
How many acoustic panels do I need for my home studio?
As a rule of thumb: Treat at least 20-30 percent of the wall surface with absorbing materials. For a 15 m² studio with 2.50 m ceiling height, this corresponds to about 5-7 m² of panel surface. Start with the First Reflection Points lateral to the listening position, the ceiling above it, and the wall behind the speakers. Make test recordings and expand the treatment step by step until you achieve the desired sound.
Are acoustic panels sufficient, or do I need structural soundproofing?
For most home studios, acoustic panels are completely sufficient and even more effective than structural measures. They improve room acoustics—i.e., how the room sounds—noticeably. Structural soundproofing (against external noise) is only necessary if there are extreme noise sources or if you record very loud instruments and have to protect neighbors. In rental apartments, structural measures are usually not feasible anyway.
Which panels are better suited: Felt or Wood?
Both have their justification. Felt panels (15 mm, 2000 g/m²) are cheaper, self-adhesive, and offer excellent absorption with αw 0.9—ideal for First Reflection Points and surface treatment. Wood panels (21 mm total, felt + slats) are visually higher quality, offer additional diffusion through the slats, and are suitable for representative areas. Many studios combine both: Wood in visible places, felt in functional points.
Can I install acoustic panels in a rental apartment?
Yes, easily. Self-adhesive felt panels can be removed without residue without damaging the wall—perfect for rental spaces. Wood panels can be mounted with screws (leaves only small, easy-to-fill holes) or with removable mounting adhesive. Only avoid permanent bonding with contact adhesive. Many landlords also have no objection to acoustic panels, as they do not change the building substance.
How do cheap foam pyramids differ from high-quality acoustic panels?
Foam pyramids are thin (usually 3-5 cm) and light, therefore absorb mainly high frequencies. The result: The room sounds dull, but reverb and bass accumulations remain. Highly compressed felt panels with 1500-2000 g/m² and 15-21 mm strength absorb more broadband, are more flame retardant, odorless, and visually more appealing. The absorption coefficient αw 0.9 shows the measurably higher effectiveness.
Do I also need to soundproof the door and windows?
For room acoustics (how the room sounds), doors and windows are less relevant. For sound isolation (against external noise), however, they are critical weak points. Simple measures: Sealing strips on door frames, heavy curtains in front of windows. If outside noise really disturbs you, you can cover the door with wall protection acoustic felt—this offers sound absorption as well as impact protection and is found in many studios on doors.
How do I maintain and clean acoustic panels?
High-quality acoustic panels made of recycled PET are equipped with a surface seal that makes them water-repellent and colorfast. Remove dust simply with a feather duster or vacuum cleaner (low setting, upholstery nozzle). Stains can be wiped off with a slightly damp cloth. Avoid aggressive cleaning agents or soaking wet wiping. The panels thus retain their acoustic effect and optical quality for years.
Can I cut acoustic panels to leave out sockets or light switches?
Yes, this is easily possible. Felt panels can be cut precisely with a commercially available carpet knife or cutter. For wood panels, cut the felt with the carpet knife and the wooden slats with a fine saw (jigsaw or handsaw). This way you can adapt the panels exactly to your room situation and create cutouts for electrical installations, radiators, or other fixtures.
