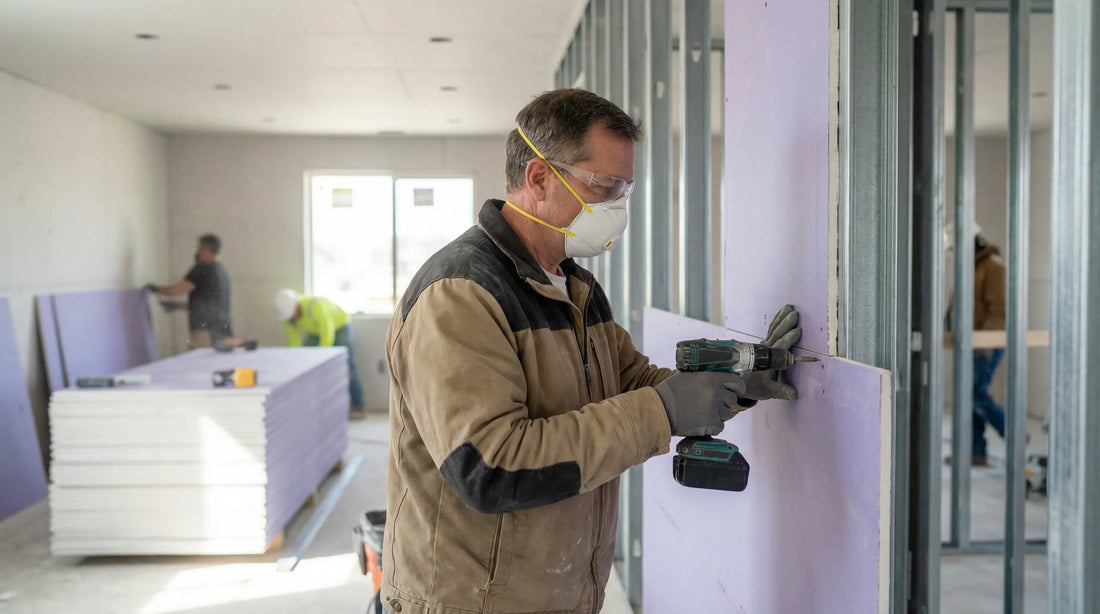

Soundproofing with Drywall: Drywall Construction for Better Acoustics

Why drywall walls present special challenges for soundproofing

To understand why sound insulation in drywall walls requires special attention, it is worth looking at the physical principles of sound transmission. Sound propagates as a vibration through air and solid materials. When a sound wave hits a wall, it sets it into vibration – the wall effectively becomes a loudspeaker that re-radiates the sound on the other side.

In massive walls made of concrete or masonry, the sheer mass acts as a natural barrier: heavy materials are less easily set into vibration. A 24-centimeter thick brick wall weighs about 350 kilograms per square meter and thus offers excellent sound insulation values of 55 decibels and more. A simple drywall wall with 12.5-millimeter gypsum boards on both sides of a metal stud frame, on the other hand, weighs only about 25 kilograms per square meter – and achieves sound insulation values of only around 35 decibels without further measures.

There is also another problem: gypsum boards are relatively stiff and transmit vibrations well. If the boards are attached to the same stud frame on both sides, a direct sound bridge is created. Every vibration is transmitted practically loss-free from one side to the other. The cavity between the boards can even be counterproductive if not properly filled – it then acts as a resonance chamber that even amplifies certain frequencies.

The three pillars of effective sound insulation in drywalling

Anyone wanting to erect a drywall wall with good sound insulation values must observe three basic principles: mass, decoupling, and absorption. Only the interplay of these three factors leads to satisfactory results.

Increasing mass through multi-layer cladding

The simplest means of improving sound insulation is increasing the mass per unit area. Instead of a single 12.5-millimeter gypsum board, two layers are mounted per side. Even better are special soundproofing boards with higher density. These weigh significantly more than standard gypsum boards at the same thickness and thus offer better insulation values.

Double cladding with 12.5-millimeter boards on both sides increases the weight of the wall from 25 to about 50 kilograms per square meter. This improves sound insulation by about 5 to 8 decibels – which is subjectively perceived as a clearly noticeable difference, since a reduction of 10 decibels corresponds to approximately halving the perceived volume.

Decoupling to interrupt sound bridges

The second central principle is decoupling. This is about interrupting the direct transmission of vibrations. In drywalling, there are several proven methods for this:

The double stud construction is considered the gold standard of sound insulation. Two separate metal stud frames are erected, which are mechanically separated from each other. Each wall side receives its own stud frame, so that no direct connection exists between the claddings. Vibrations can no longer transmit directly. This construction method achieves sound insulation values of 60 decibels and more with appropriate insulation – comparable to solid walls.

A cheaper alternative is staggered cladding on a wide stud frame. Here, a 100 or 150-millimeter wide CW profile is used, and the gypsum boards are mounted offset: one side is attached to the front profile edge, the other to the back. Although this does not create complete decoupling, direct sound transmission is significantly reduced.

Additionally, decoupling strips made of rubber or foam can be inserted between the stud frame and boards. These further dampen vibration transmission. Decoupling is also particularly important at connections to ceilings, floors, and adjacent walls – special sealing tapes are used here.

Absorption through insulation filling

The third component is filling the cavity with absorbent material. Mineral wool, rock wool, or special acoustic insulation boards convert sound energy into heat and prevent the cavity from acting as a resonance chamber. Crucial here is not only the presence, but also the quality and complete filling.

For optimal sound insulation, mineral wool with a density of at least 40 kg/m³ should be used. Even better results are provided by highly compressed acoustic insulation boards with 60 to 80 kg/m³. The insulation must fill the entire cavity without gaps – even small gaps can significantly reduce the insulation effect, as sound finds its way through the weakest point.

Construction examples for various requirements

In practice, various wall structures have proven successful, meeting different requirements. Choosing the right construction depends on the desired sound insulation value, spatial conditions, and budget.

Standard partition wall for normal living spaces

For partition walls between living and bedrooms or between hallways and living areas, a simple stud wall construction with optimized execution is usually sufficient. The structure consists of a 100-millimeter CW profile, which is completely filled with 80-millimeter mineral wool (40 kg/m³). On both sides, two layers of 12.5-millimeter gypsum boards are mounted offset. Connections to ceilings, floors, and walls are executed with sealing tape.

This construction achieves sound insulation values around 50 decibels and offers sufficient soundproofing for most living situations. The total thickness is about 125 millimeters, which can be realized in most floor plans without problems.

High-quality partition wall for increased requirements

If higher requirements exist – for example, between apartments in multi-family houses or between living and work areas – a double stud construction is recommended. Two separate 50-millimeter CW profiles are mounted with a 30-millimeter distance to each other. Each stud frame is filled with 60-millimeter mineral wool. Cladding is done with two layers of 12.5-millimeter gypsum boards per side.

This construction achieves sound insulation values of 60 decibels and more. The total thickness is about 180 millimeters. The higher material and assembly effort pays off wherever peace and privacy are particularly important.

Space-saving solution with soundproofing boards

If space is limited, special soundproofing gypsum boards can help. These have a higher density at the same thickness and thus better insulation properties. A 75-millimeter CW profile is completely filled with highly compressed acoustic insulation (60 kg/m³). On both sides, one layer of 12.5-millimeter soundproofing board is mounted, followed by another layer of standard gypsum board.

With a total thickness of only 100 millimeters, this construction achieves sound insulation values around 48 decibels – a good compromise when every centimeter counts.

Critical details in execution

Even the best construction on paper can fail in practice if details are not observed. The sound insulation of a wall is only as good as its weakest point.

Connections and penetrations

Connections to adjacent components deserve special attention. At ceilings, floors, and side walls, sealing tapes must be used throughout before the stud profiles are mounted. These elastic tapes prevent the transmission of structure-borne noise and seal air gaps.

Sockets and switches are classic weak points. Ideally, they should be arranged offset on both wall sides so that no continuous opening is created. The back boxes should be wrapped with insulation material and provided with special sound insulation capsules. Even better are sound-insulated flush-mounted boxes with built-in insulation material.

Pipe penetrations for heating, water, or electricity must be executed elastically. The pipes must not touch the gypsum boards directly but are decoupled by sleeves or foam rings. The remaining gap is sealed with permanently elastic sealant.

Joints and joint compound

The joints between gypsum boards also influence sound insulation. They must be completely and carefully taped and filled so that no air gaps remain. For the highest requirements, there are special sound-absorbing joint compounds that additionally have a damping effect.

With multi-layer cladding, the joints of the individual layers should run offset. The first layer is mounted vertically, for example, the second horizontally. This covers weak points and increases overall stability.

The difference between sound insulation and sound absorption

At this point, it is important to clarify two often confused terms: sound insulation and sound absorption describe different acoustic phenomena, both of which are important for good living comfort.

Sound insulation refers to the ability of a wall to prevent sound from getting from one room to another. It is therefore about transmission between rooms. Good sound insulation ensures that conversations from the next room are not heard. It is measured in decibels and determined by the structural design of the wall.

Sound absorption, on the other hand, describes the improvement of acoustics within a room. Here it is about reducing reverberation and echo. Sound waves generated in the room are reflected by hard surfaces and create reverberation. Absorbent materials on walls, ceilings, or as free-standing elements swallow these reflections and ensure a clearer, more pleasant sound.

In practice, this means: A perfectly sound-insulated drywall wall prevents noise from escaping or entering – but it does not automatically improve the acoustics in the room itself. Especially in rooms with many smooth surfaces such as drywall walls, laminate, and large windows, an unpleasant reverberant sound often occurs. Here, additional sound absorption through absorbent elements is useful.

Subsequent improvement of room acoustics

When the drywall wall is already in place and structural changes are no longer possible or desired, absorbent wall elements offer a practical solution for improving room acoustics. They reduce reverberation and ensure a significantly more pleasant sound image – without intervening in the wall construction.

Functional principle of absorbing acoustic panels

Acoustic panels made of highly compressed felt or wood slats with acoustic felt backing convert sound energy into heat. When a sound wave hits the porous surface, it penetrates the material. The air molecules move back and forth in the fine pores, losing energy through friction. The sound wave is not reflected but absorbed.

Materials with high density are particularly effective. Felt acoustic panels with a grammage of 2000 g/m² achieve a sound absorption coefficient of αw 0.9 – this means that up to 90 percent of the incident sound energy is absorbed. For comparison: A smooth drywall wall reflects about 95 percent of the sound.

Practical solutions for different rooms

For living spaces where aesthetics play an important role, acoustic panels made of wood are suitable. These combine the look of natural wood slats with the functionality of an underlying acoustic felt. The wood slats break the sound and scatter it in different directions, while the 9-millimeter thick felt with 1500 g/m² absorbs the sound energy. With dimensions of 120 x 60 centimeters, larger wall areas can be elegantly designed.

Assembly is done with assembly adhesive, screws, or nails directly on the drywall wall. Due to the weight of 5.2 kilograms per panel, a self-adhesive solution is not practical – attachment with adhesive or mechanical fasteners ensures permanent hold even on wallpaper, plaster, or painted surfaces.

For rooms with limited space or where a more discreet look is desired, self-adhesive felt panels are suitable. With a thickness of 15 millimeters and the particularly high density of 2000 g/m², they offer excellent absorption values despite compact dimensions of 30 x 30 centimeters. The self-adhesive back allows for tool-free assembly and adheres reliably even to cold walls.

One advantage of these solutions: they are removable without residue and thus ideal for rented apartments. The improvement in room acoustics is immediately audible – conversations become clearer, music sounds more differentiated, and the general noise level is perceived as significantly more pleasant.

Optimal placement for maximum effect

For the best acoustic effect, absorbent elements should be placed strategically. Areas opposite sound sources are particularly effective – for example, the wall opposite the television or stereo system. The areas next to and behind the seating area are also sensible positions, as many reflections hit here.

As a rule of thumb: Even 15 to 20 percent of the wall area with absorbent material can halve the reverberation in a room. In a 20-square-meter room with 40 square meters of wall area, 6 to 8 square meters of acoustic panels are sufficient for a clearly noticeable improvement.

Special situations: Sound insulation for installation walls

Installation walls in front of sanitary areas or for cladding supply lines present special challenges. Here, in addition to airborne noise problems, there is also structure-borne noise transmission through pipe systems.

Water pipes should basically be fixed with foam clamps that dampen vibrations. The pipes themselves are sheathed with insulation hoses, which serve not only for thermal insulation but also reduce flow noises. The cavity of the pre-wall installation is completely filled with mineral wool.

For cladding, a heavy execution with at least two layers of gypsum boards is recommended. Between the first layer and the stud frame, a vibration insulation mat made of rubber or special acoustic foam can be additionally applied. This additional decoupling particularly reduces the transmission of low frequencies, such as those that occur during water flow.

Sound insulation for sloped ceilings and ceilings

In attics, drywall systems are often used to clad sloped ceilings. Sound insulation to the outside is usually less critical here, as the roof construction itself already has a certain insulation effect. More important is avoiding thermal bridges and ensuring airtightness.

The situation is different with suspended ceilings that separate rooms from each other. Here, similar principles apply as for partition walls: mass, decoupling, and absorption are crucial. The ceiling suspension should be done with special vibration dampers that minimize the transmission of impact sound from the upper floor. The cavity is filled with mineral wool, cladding is done in multiple layers.

Ceiling penetrations for lights are particularly critical. Recessed spotlights break through the insulation level and can represent considerable sound bridges. Surface-mounted lights or special sound-insulated recessed boxes for lights are better.

Avoiding mistakes: Common problems and their solutions

In practice, typical mistakes repeatedly appear that significantly impair the sound insulation of drywall walls. Knowing these stumbling blocks helps to avoid them from the outset.

Incomplete insulation filling: One of the most frequent mistakes is a gap-filled filling of the cavity. Especially in the area of sockets, pipe penetrations, or at the edges, mineral wool is often not installed carefully. Even small gaps can reduce the insulation effect by several decibels. The solution: Cut insulation material carefully and fill even hard-to-reach areas completely.

Rigid connections: When gypsum boards butt directly against adjacent components without sealing tapes in between, sound bridges arise. Particularly problematic are rigid connections to massive walls or ceilings that transmit structure-borne noise well. The solution: Use sealing tapes consistently at all connections and leave a small distance that is filled with elastic sealant.

Cladding too thin: For cost reasons, sometimes only a single layer of gypsum boards is mounted. This may be sufficient for non-load-bearing interior walls, but it is completely inadequate for soundproofing. The solution: Plan at least two layers per side, and use soundproofing boards for increased requirements.

Continuous joints: If the joints of all layers lie on top of each other with multi-layer cladding, weak points remain in the construction. The solution: Mount layers offset so that the joints of the second layer always lie in the area of the full boards of the first layer.

Cost-benefit analysis of various measures

During planning, the question often arises as to which measures offer the best relationship between effort and effect. A basic orientation can be helpful here.

Filling with mineral wool is the most cost-effective measure with the greatest effect. The material price is about 5 to 10 USD per square meter of wall area, the improvement in sound insulation is 8 to 12 decibels compared to an unfilled wall. This measure should be implemented in any case.

Double cladding doubles the material cost for the boards (about 15 to 20 USD per square meter additional), but brings a further 5 to 8 decibels improvement. The assembly effort also increases significantly. This investment pays off wherever peace and quiet are important.

A double stud construction causes the highest costs – both material and working time nearly double. The improvement compared to an optimized single stud wall is about 8 to 12 decibels. This construction is primarily sensible for high requirements between residential units or to loud rooms.

For the subsequent improvement of room acoustics with acoustic panels, about 50 to 150 USD per square meter should be calculated, depending on material and design. The benefit is immediately audible and significantly improves the quality of stay – without structural interventions in the wall construction.

Legal requirements and standards

When planning partition walls in residential construction, the requirements of DIN 4109 (Sound insulation in buildings) must be observed. This standard defines minimum requirements that must be complied with in Germany.

For partition walls between apartments, a rated sound insulation measure of at least 53 decibels is required. This value is quite achievable with drywall constructions, but requires careful execution with double cladding and complete insulation filling.

Within apartments, lower requirements apply. Here, 42 to 47 decibels are usually sufficient, depending on the room type. These values can also be achieved with simpler constructions.

Important to know: DIN 4109 defines only minimum requirements. For increased living comfort, the standard itself recommends even higher values. Many builders and architects therefore orient themselves to the recommendations of Sound Insulation Level II, which is about 5 decibels above the minimum requirements.

Practical tips for DIY enthusiasts

Anyone wanting to erect a drywall wall with good sound insulation themselves should note the following points:

Planning is everything: Determine before the first cut where sockets, switches, and penetrations should be located. Plan offset on both wall sides to avoid continuous openings.

Clean preparation: Apply sealing tapes to floors, ceilings, and adjacent walls before mounting the stud profiles. These tapes are self-adhesive and available in every hardware store.

Installing mineral wool correctly: Cut the insulation boards about 1 to 2 centimeters wider than the distance between the studs. This way they clamp themselves tight and do not slip. Wear gloves and a dust mask while doing so.

Mount cladding offset: Start the first layer in portrait format, the second in landscape format. Use quick-assembly screws at a distance of about 25 centimeters for fastening.

Taping joints carefully: Use joint tapes made of paper or glass fiber and apply the joint compound in several thin layers. Well-taped joints are not only visually important but also for soundproofing.

Patience with penetrations: Take your time with sockets and pipe penetrations. This often decides whether the wall is really tight later. Use insulation remnants for stuffing and elastic sealant for sealing.

Future perspective: New materials and technologies

Development in the field of drywall and soundproofing is not standing still. New materials and construction principles promise even better results with less effort in the future.

Particularly interesting are composite boards that combine several layers of different materials. A gypsum board is factory-glued with an insulation layer and a second board. These systems reduce assembly effort and guarantee an optimal connection of the layers.

Also in the area of insulation filling, there are innovations. Besides classic mineral wool, recycling materials are increasingly being used, for example from processed PET or cellulose. These materials offer comparable acoustic properties with a better ecological balance.

Vibration-damping profiles made of plastic or with integrated damping elements could make the separate use of sealing tapes superfluous in the future. Initial systems are already on the market and showing promising results.

When professional advice is worthwhile

Despite all information, there are situations where professional support is sensible or even necessary. For partition walls between apartments in multi-family houses, legal requirements are strict, and mistakes can be expensive. Here, a specialist planner should calculate the construction and supervise the execution.

Also for particularly high requirements – for example for music rooms, home cinemas, or very thin-walled old buildings – the investment in acoustic advice is worthwhile. Specialists can determine the optimal construction using simulations and also develop unusual solutions.

For normal living situations and when observing the described basic principles, however, self-planning is quite possible. The investment in high-quality materials and careful execution pays off in any case – through noticeably more peace and living comfort.
